Features

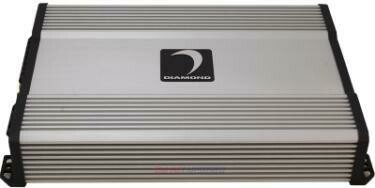

2Ω Stable: The D300.2 can power loads as low as 2Ω in stereo, 4Ω bridged; the RMS power output is 100 watts x 2 at 4Ω, 150 watts x 2 at 2Ω, and 300 watts x 1 at 4Ω when bridged.

LEDs: Power and Protection LEDs are located on the side of the amplifier. A blue Power LED illuminates when the amplifier is turned on and operating normally. A red LED illuminates when any of the amplifier's protection circuits engage; thermal, short circuit, or too low an impedance.

Controls

Gain: The amplifier's input gain setting is adjusted to match the incoming signal voltage. The input gain is continuously variable, line level from 150 mV to 5.0 V and speaker level from 5 V to 24 V.

Bass Boost: The bass boost, centered at 50 Hz, is variable from zero to +12 dB.

Crossover Switch: The internal crossover can be set to low-pass, high-pass, or full range (crossover is bypassed).

Crossover Frequency: The crossover frequency is continuously variable from 50 Hz to 250 Hz. The slope is 12 dB/oct.

Connections

Power Connections: The power and ground terminals are nickel plated set screws and will accommodate up to 4-gauge wire. The remote turn-on terminal will accept up to 10-gauge wire. 4mm (power and ground) and 2mm (remote) Allen wrenches (not included) are required to tighten/loosen the terminals.

Speaker Terminals: The nickel plated set screw speaker terminals will accept up to 8-gauge wire. A 3mm Allen wrench (not included) is required to tighten/loosen the terminals.

RCA Inputs: The D300.2 features a pair of RCA input jacks for easy connection to the source unit's line level output. The RCA input jacks are nickel plated to resist signal degradation caused by corrosion.

Speaker Inputs: Use the included speaker-level input harness to supply signal to the amp when the receiver has no RCA outputs.

RCA Outputs: The amplifier also features a pair of Pass-Thru RCA jacks, providing a convenient method of daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle. The RCA output jacks are nickel plated and are unaffected by the D300.2's crossover and bass boost circuitry.
